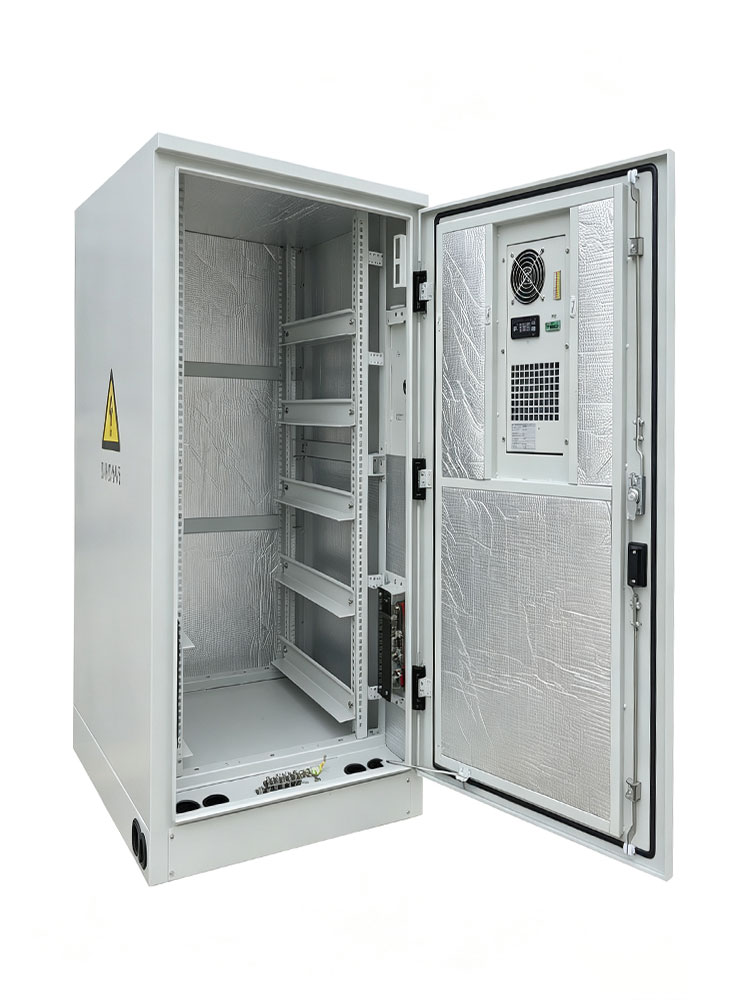

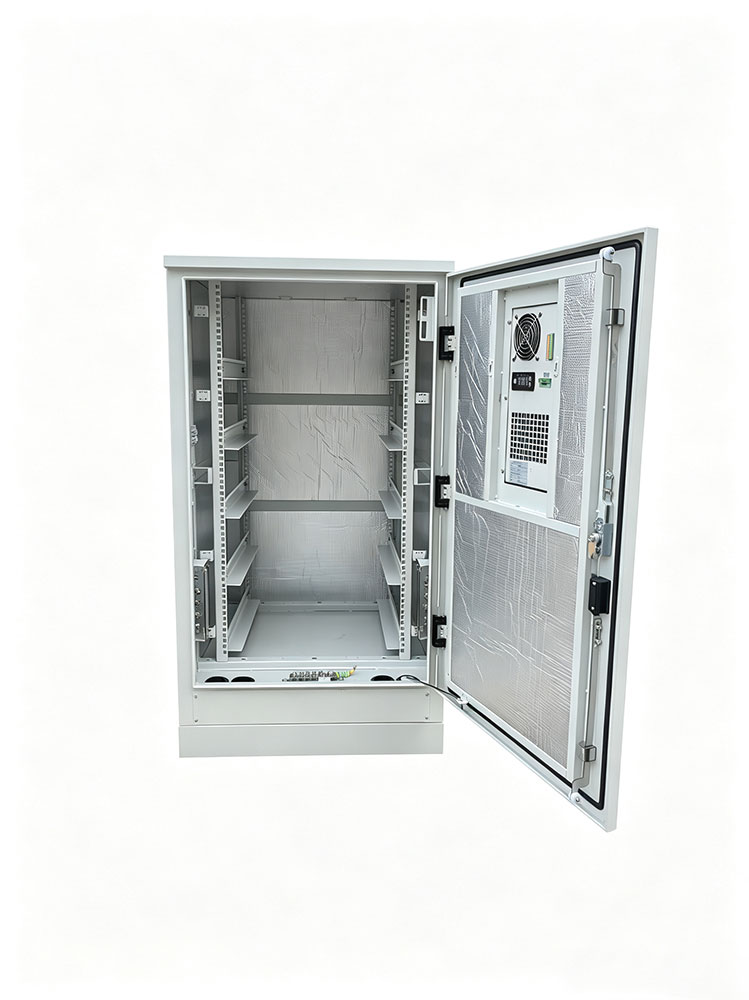

Yuyue Model YY-110006500800 outdoor air-conditioned battery cabinet frame is welded from galvanized steel sheets and lined with 20 mm thick PEF thermal insulation cotton. It features a single front door and floor-standing installation. A standard 19-inch rack is equipped inside, providing mounting space for five 3U rack-mounted lithium batteries.

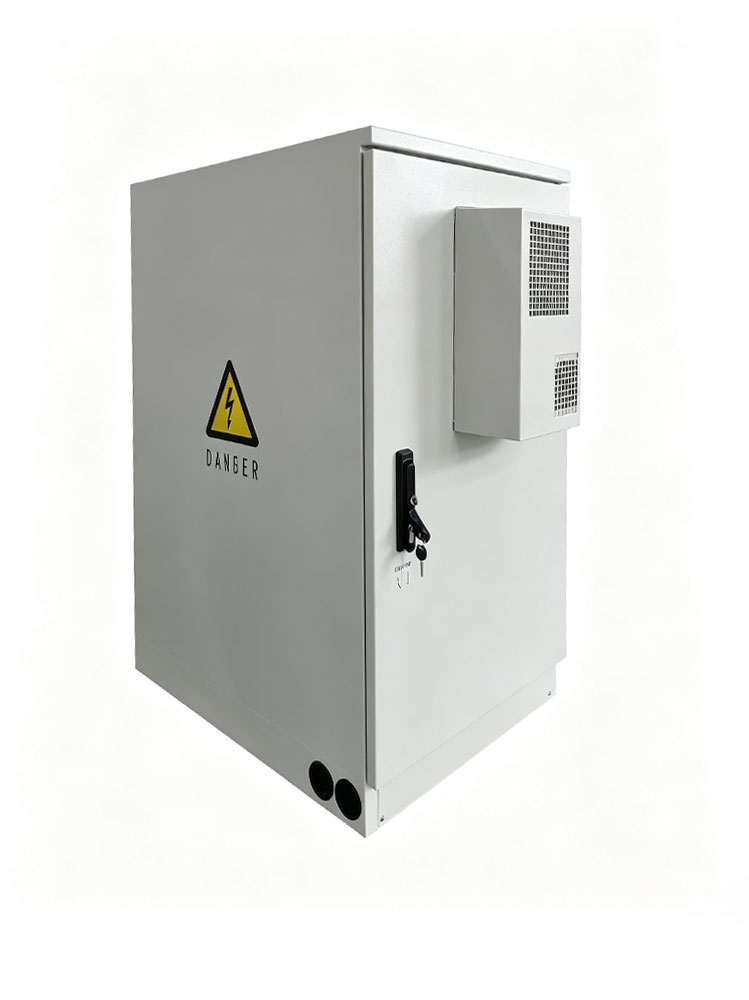

A semi-embedded cabinet air conditioner is installed on the cabinet door for temperature control without occupying internal space. The cabinet boasts rainproof and dustproof performance, which effectively maintains a stable operating environment for the internal lithium batteries and extends their service life. It is applicable to various harsh field environments.
Technical Specifications
Technical Parameters
| Product name | Outdoor lithium iron phosphate battery cabinet（19U） |
Model | YY-110006500800 | |
Dimension（HxWxD） | External dimension：1100x650x800mm Inner dimension：950x600x750mm | |
Material | Galvanized sheet | |
Insulation thickness | 20mm thick PEF insulation cotton | |
Maintenance method | Front door | |
Assembling method | Floor | |
Rack size | 19 inch rack+5 pairs of L-shaped support bars | |
Protection level | IP55 | |
Working temperature | -40℃～+55℃ | |
Cool system | Cooling capacity 300W air conditioner (DC 48V) |
