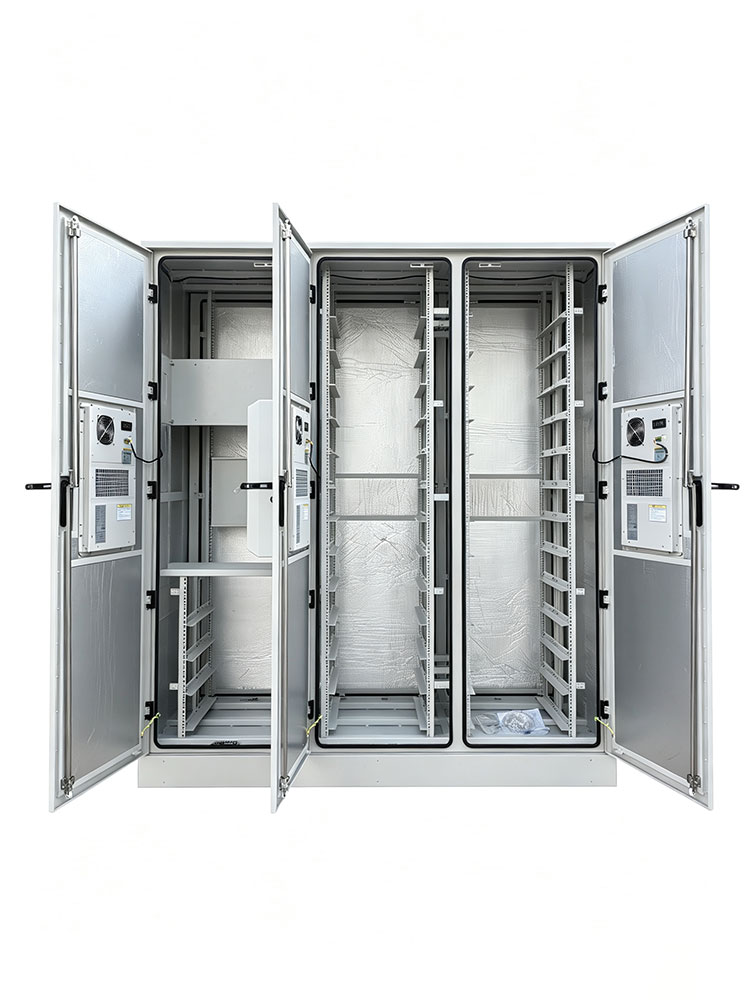

Yuyue Model YY-230021000850 outdoor air-conditioned triple-compartment cabinet frame is welded with galvanized steel sheets. Its door panels, top cover, base and internal racks adopt an assembled structure, and the interior is lined with 20 mm thick PEF thermal insulation cotton. The cabinet is fitted with six doors on the front and rear sides and supports floor-standing installation. A standard 19-inch rack is installed inside, providing 135U equipment mounting space. Support shelves or L-shaped support rails can be configured according to customers’ actual equipment installation requirements.

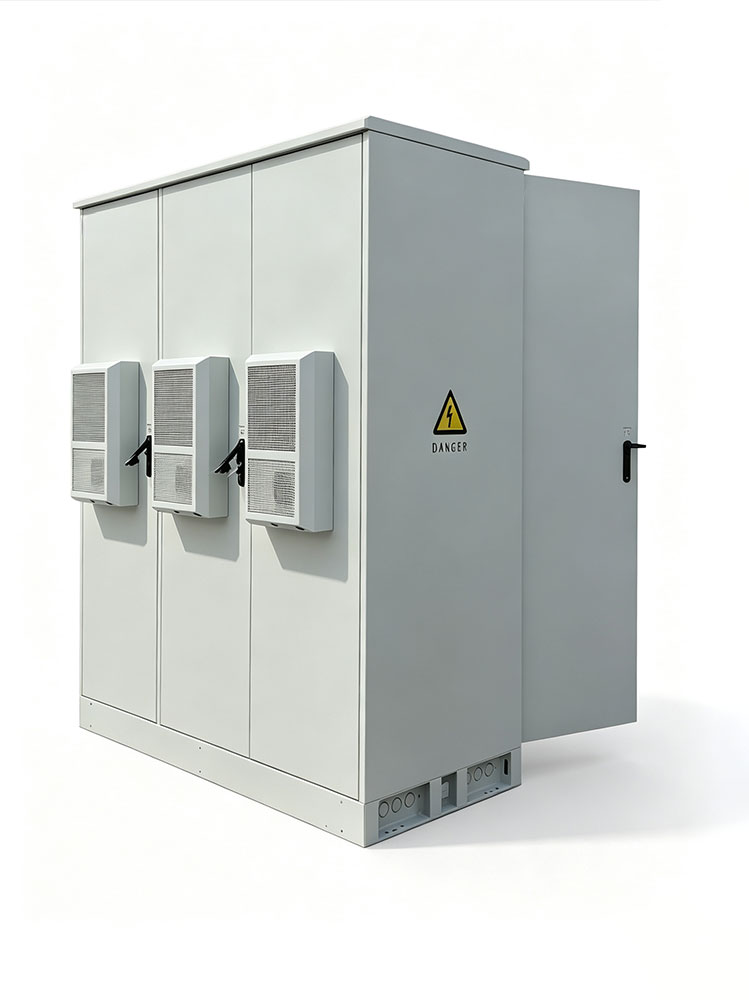

Semi-embedded cabinet air conditioners are mounted on cabinet doors for temperature control without occupying internal space. Featuring superior rainproof and dustproof performance, the cabinet effectively maintains a stable operating environment for internal equipment and extends the service life of electronic devices, making it applicable to various harsh field environments.

Technical Specifications

Technical Parameters	Product name	Three compartment Outdoor Cabinet
	Model	YY-230021000850
	Dimension（HxWxD）	External dimension：2300x2100x850mm Inner dimension：2100x2050x800mm
	Material	Galvanized sheet
	Insulation thickness	20mm thick PEF insulation cotton
	Maintenance method	6 doors in the front and back
	Assembling method	Floor
	Rack size	19 inch racks (30 pairs of L-shaped support bars)
	Protection level	IP55
	Working temperature	-40℃～+55℃
	Cool system	3 air conditioners with a cooling capacity of 600W
