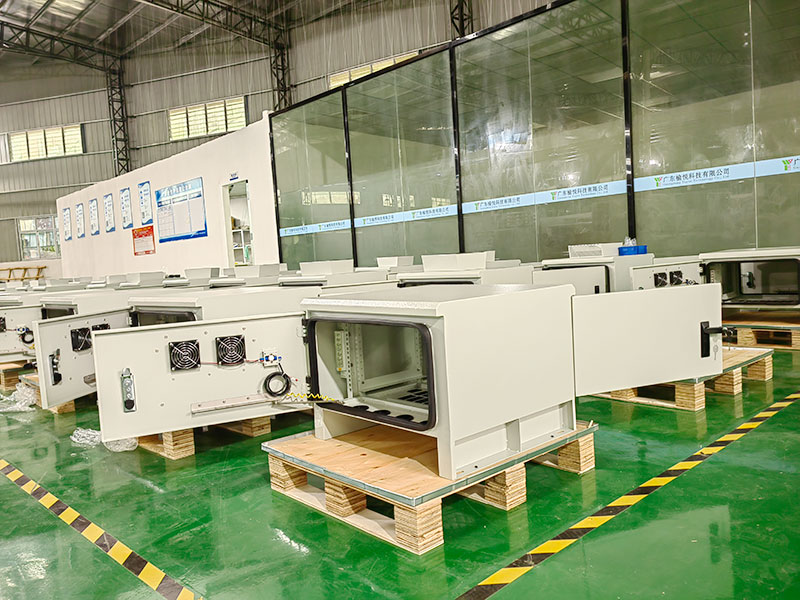

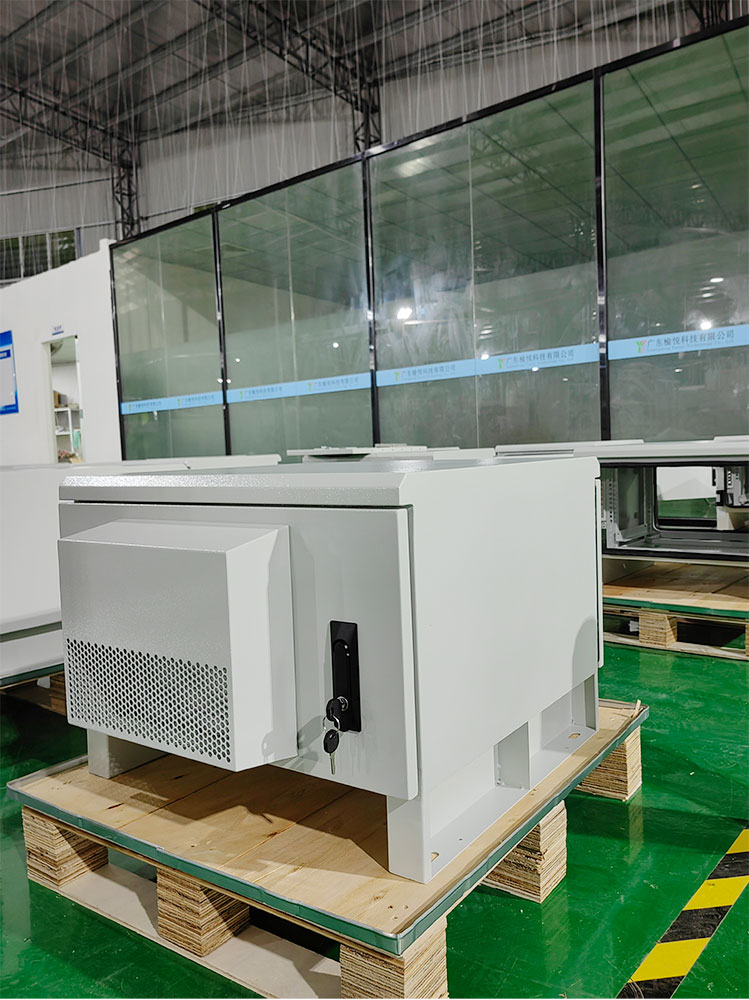

Yuyue Model YY-045006000600 outdoor fan-cooled cabinet frame is fabricated by welding galvanized steel sheets. It has front and rear double doors for convenient equipment maintenance. A standard 19-inch rack is installed internally, offering 6U equipment mounting space. Support shelves or L-shaped support rails can be configured to match customers’ specific equipment installation demands.
The cabinet adopts a bottom air intake and door-mounted fan exhaust cooling system regulated by a temperature controller. With reliable rainproof and dustproof performance, it maintains a stable operating environment for internal equipment and extends the service life of electronic devices, suitable for various harsh field environments.
Technical Specifications
Technical Parameters
| Product name | Outdoor Cabinet（6U） |
Model | YY-045006000600 | |
Dimension（HxWxD） | External dimension：450x600x600mm Inner dimension：267x590x590mm | |
Material | Galvanized sheet | |
Insulation thickness | NO | |
Maintenance method | Front and real doors | |
Assembling method | Floor | |
Rack size | 19 inch rack+2 pairs of L-shaped support bars | |
Protection level | IP54 | |
Working temperature | -40℃～+55℃ | |
Cool system | Bottom air intake, 2 door fans with temperature controller |
![[pics:title]](/uploads/images/20260719/1784467343423852.jpg)
![[pics:title]](/uploads/images/20260719/1784467344297416.jpg)
![[pics:title]](/uploads/images/20260719/1784467345369393.jpg)
